Freestanding Trapezoid Batting Cage Corner Connectors & Net

Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
FREE Shipping
Original price $849.00 - Original price $1,419.00
Original price
$849.00 - $1,419.00
Current price $849.00
💬 Need Help? Start Live Chat!
⚠️ New orders on this product are currently delayed for the 70ft for 1 month. We are sorry for the inconvenience and appreciate your patience.

Note: You must purchase your poles from Lowes, Home Depot, or a fencing company, as they are not included in this package.

The Freestanding Trapezoid Batting Cage is our most popular and affordable batting cage system. If you want to purchase your poles, this package is for you. This package has no poles, so you must buy them locally. If you want a complete trapezoid with the net and frame, check out our Trapezoid Batting Cage Package (complete). The HDPE #32 netting has a trapezoid shape just like the frame, so you can utilize the cage's full width, making it an excellent choice for a batting cage net.

Read more about this product...

What's Included

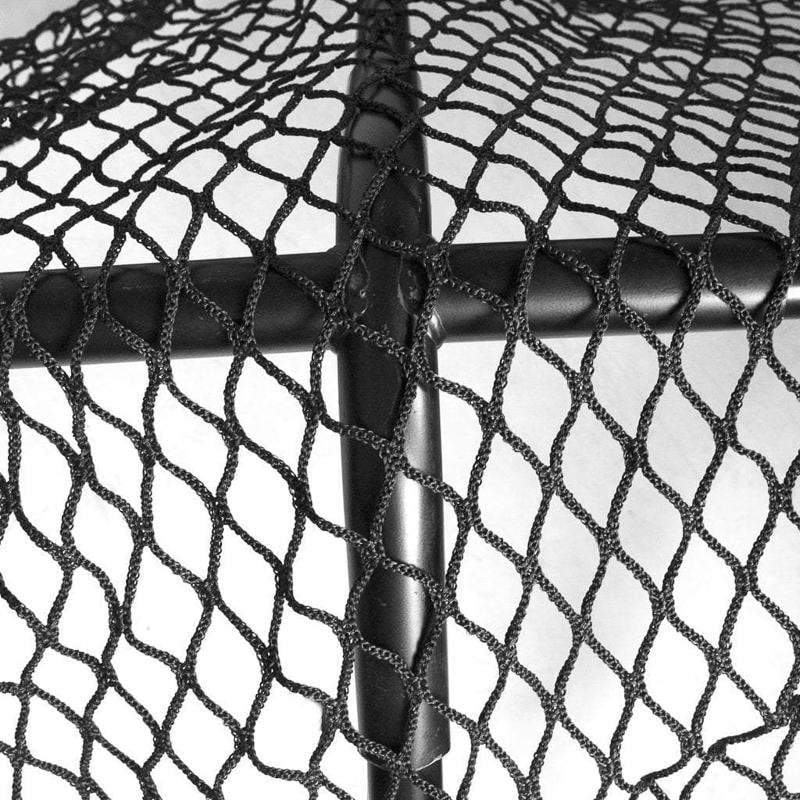

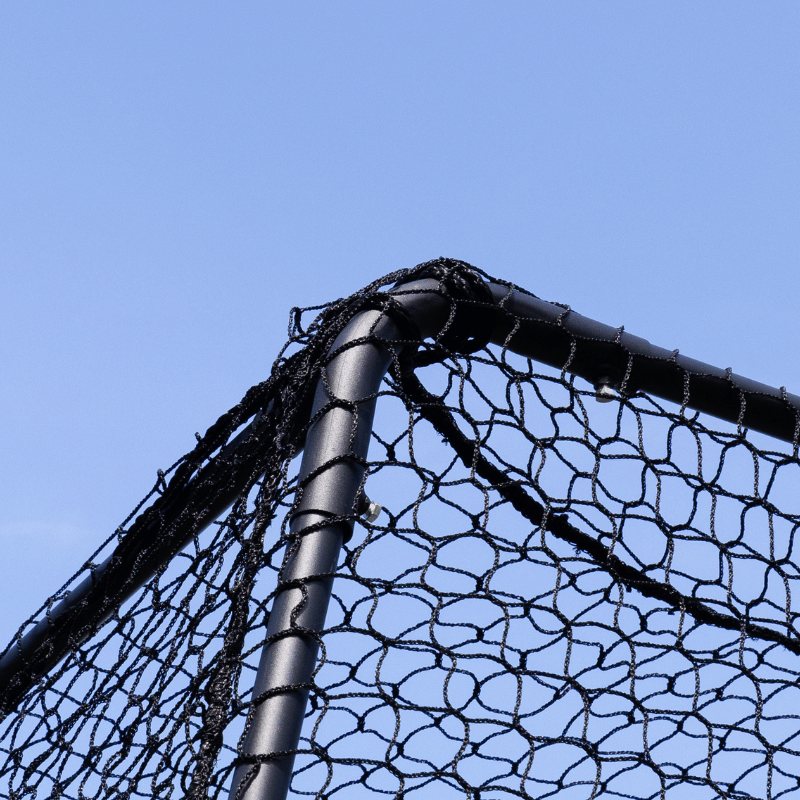

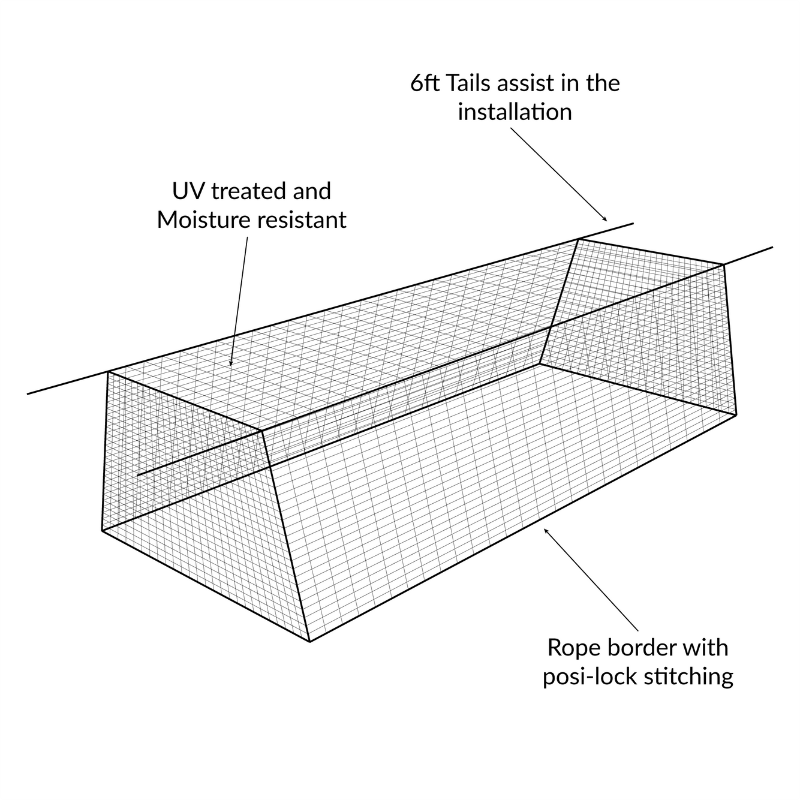

#32 HDPE Trapezoid Batting Cage Net

Some systems hang a square net directly down from the top of the frame, so the extra width at the bottom of the cage is unusable, and the cage still takes up valuable yard space. This net has a trapezoid shape, just like the frame, so that you can utilize the entire width of the cage.

What you'll need to complete your DIY batting cage frame

Since this cage has no poles, you must buy them locally. Here are the amount of poles and sizes you will need for each frame size. Most poles bought from fencing companies, Home Depot, etc, are longer than specified below. Because of this size difference, you will need to shorten the poles.

    • 35' frame: (21) 9-foot 10.5-inch poles and (2) 5-foot poles
    • 55' frame: (31) 9-foot 10.5-inch poles and (2) 5-foot poles
    • 70' frame: (38) 9-foot 10.5-inch poles

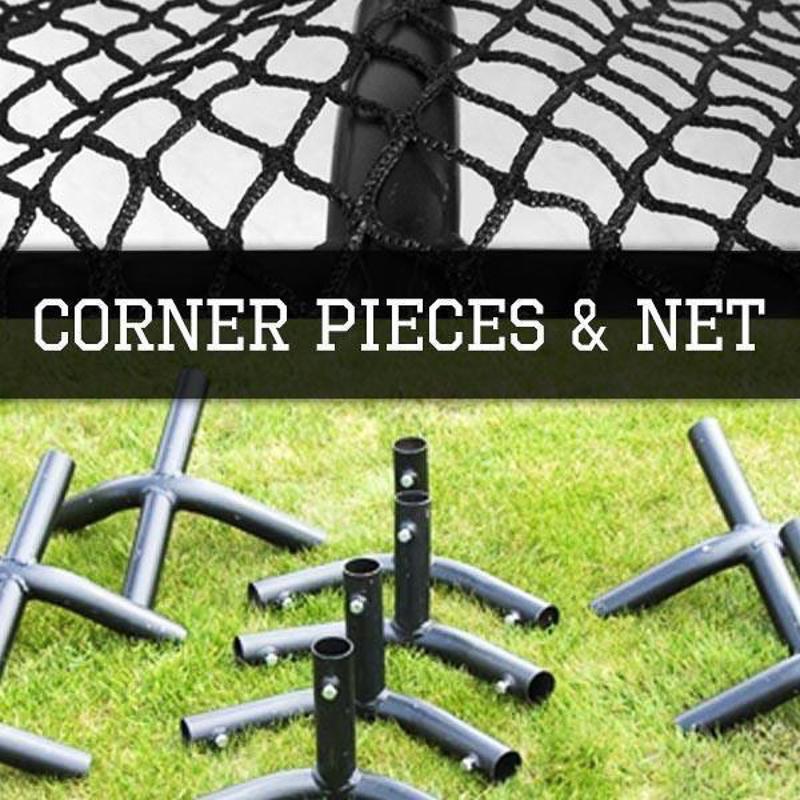

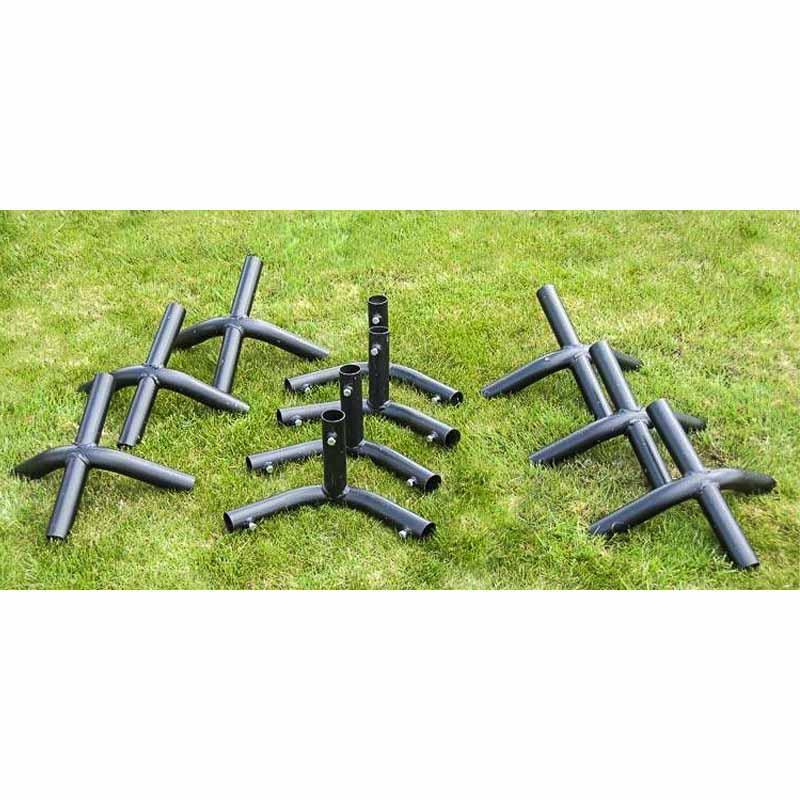

Trapezoid Batting Cage Frame Corner Kit

This kit includes all the connector pieces you'll need to assemble your batting cage. Those pieces fit 1-3/8 inch (or 32mm, outside diameter) galvanized steel pipe from any local hardware supply store.

    Cage dimensions

    • Height: 10ft tall
    • Top Width: 10ft
    • Bottom Width: 15ft
    • Length: 35ft, 55ft, or 70ft
    Assembly Instructions

    Click here to see the assembly instructions

    Disclaimer: Weather-related damage (wind, snow, etc.) to batting cage poles is not covered or considered a defect.
